Thursday, November 18, 2010

After the Earthquake: Repairing Richmond's Urban Fabric

Urban historian William Carroll Westfall has asserted in his web-based study “Learning from Pompeii” that those who would restore the torn tissues of American cities can learn a great deal by studying the formal histories of successful urban centers of the past. In Richmond this begins with a renewed understanding of the different standards observed by eighteenth- and early nineteenth-century Virginians observed when they laid out their principal provincial towns and proceeded to enlarge and rebuild them over time. Most importantly, the designers of our cities placed greater emphasis on the public realm than we do today. According to Westfall, like the Romans who rebuilt the much earlier Samnite town at Pompeii after an earthquake, our task in repairing our devastated cities should honor the “urban ensemble rather than the individual building. . . . mutilated by neglect or, in the case of the last half century or more of building activity, marred by a disregard for the common good.”
In contrast to modern American practice, traditional cities placed “greater value on public places than on private ones while we do the reverse.” Traditional cities were
compact and cut off from the countryside rather than loose and sprawling as our cities are. . . . built with a range of architectural and urban elements clearly belonging to the same general range of components while our cities are much more diverse--cheek and jowl is a miscellany of buildings in different architectural styles, a jumble of industrial and transportation equipment and their related yards and dumps, fields of abandoned buildings, wastelands, and miscellaneous pieces of equipment in varying states of deterioration, all diffused across open rural landscapes or depopulated urban areas. And while the expanding sprawl of our cities forces us to drive more and more to get most of what we want, most of what a person in Pompeii [and Richmond] needed to live a full and abundant civil life was accessible with the most democratic means of transport, going on foot.
In his attempt to understand a traditional city with a layered history, Westfall asks two questions: “First, What kind of life was lived in this place, that is, Why and how did its builders build as they did? And second, what rules with general validity and applicability did they follow?” If we can ask these questions of Richmond, we may discover some guidelines that may help us to recover the good life here and now. The myriad actions that result in the complexity of even such a small city as Richmond make it seem almost as difficult to untangle as Pompeii, but the effort can give us some clues about how to think through our own decisions and make needed responses to the great tradition unfolding all around us.

Friday, November 5, 2010

Understanding Richmond's Civic Order

Most accounts of Richmond’s urban and architectural history have examined the city’s buildings as individual monuments rather than as part of an urban whole. Tyler Potterfield, in his history of the city’s landscape, and Charles Brownell and his students at VCU have done a great deal to dispel a good deal of the fog surrounding the deeper structure of Richmond’s overall fabric and of the history of its specialized civic architecture at the urban scale. As a further attempt to excavate some aspects of Richmond’s civic order, we have posted to the right an ongoing series of essay on some of the building types that make up the city’s tradition of public buildings.

Virginian cities were directly related to the urban structures of the ancient world, informed by later intellectual developments, in particular Renaissance Humanism and English political theory. The changing form of our city and its layered fabric can be traced by an excavation of its political structure and of the building types that correspond to the elements of civil life. Most important, in urban historian Carroll William Westfall’s view, is the relation between civic life and architectural form. Most significantly, in the light of the civil and architectural disorder evident in modern Richmond, traditional cities employ civil functions and architecture to demonstrate how that the civic life orders and enlivens both private and commercial activities. Westfall asserts, in Learning From Pompeii, that “Roman cities illustrate a general principle: In cities that take the civil life seriously, the physical reinforces the civil and vice versa, with the one used as a means of achieving the ends of the other.”

Urban life, variously religious, political, social and commercial, requires venues where public activities can be accommodated and ordered. Virginia’s most familiar models of civic order were to be found in the towns and cities of England. Basic elements of any town or city in the English civic tradition include the church, court, tavern, and market.  In England, as Mark Girouard has shown, these activities were traditionally manifested in a hierarchy of scales. Town, County, and State each accommodated these and other civic functions, in some cases conflated in a single architectural form.  Town government and markets stalls were conventionally housed in a single building. Similarly, as ancient seats of justice, the great halls of county castles were adapted to serve as courts and indoor regional market on the regular court days that drew a larger population to the county seat.  Westminster Hall in London served a similar role at the national level.

Eighteenth-century Americans transformed English civic order and its architectural expression in ways that suited the changed circumstances of the colonies and new nation, but the forms of urban design and architectural expression continued to show their roots in Post-medieval Northern Europe. The few public buildings of the mid-eighteenth-century town at the Falls of the James- the Church on Richmond Hill and the Henrico County Courthouse- occupied sites and took forms that shaped the civic life by their careful detailing and rich materials and their placement outside the regularity of the grid of conventional lots. The church, facing due east at an angle to the grid, was placed in an elevated, anti-nodal position away from the bustle of the principal street and the courthouse was located in the middle of a principal cross street at the center of commerce and near the county jail.

When the town was selected to become the capital city after the Revolution, it acquired a new set of civic functions and a greatly expanded form. As it grew, the city’s local institutions lent civil order to the enlarged scope of commercial activities, while the market brought the prosperity that made the civic architecture possible. The institutions proper to a city included a market for commercial transactions, scales to assure fair measure, a hall for the council and court, a lockup, a constabulary to keep the gathered populace in order, and a place for the storage of records.

Following English and American tradition the city’s institutions were, at first, housed together in a new, classically detailed Market Hall, placed on the public common at the hinge between the old, county town and the new capital district. As the city civic institutions multiplied, the new public buildings, including the jail, a school, and a police station, most were located on the nearby land along Shockoe Creek.  However, by the time that the Hustings Court and City Council outgrew the Market Hall in the early nineteenth century, the valley location no longer seemed the center of the city. A new, domed City Hall with a temple front was built on Shockoe Hill in a nearly axial location directly behind the Capital on the main route though the city.  A new, second market was constructed nearby.

The new state government district was strategically placed on the Richmond’s Shockoe Hill. Existing streets were widened hierarchically, a public square created, and a program for the addition of a full range of buildings projected, adapting a previous unarticulated street grid. The working out of the state’s program took several decades and underwent many transformations, but it resulted in a powerful amalgam of public and private architecture, with a series of public buildings surrounded by a landscape of architecturally distinguished villas designed by some of the nation’s most competent architects.

A group of citizens, advised by Thomas Jefferson and a series of well-informed European immigrants, such as his associate, Benjamin Henry Latrobe, provided designs for the new city’s public and private realms. They enriched the English tradition in which they were immersed with political, urban and architectural theories imbibed from a variety of sources. Jefferson and his colleagues redefined the city’s institutions, elaborated its program, enriched its layout, and ornamented its fabric with a series of public and private buildings of exceptional quality. The planned institutions included the legislative, judicial, and executive arms of the government, an armory, and a jail (later known as the penitentiary). The massive, temple-form Capitol was placed, like an acropolis, on a knob of Shockoe Hill overlooking the river. Together with the other institutions of government, it was located on a calm, expansive public square in an anti-nodal position away from the principal thoroughfare.

Theaters, churches, and educational institutions were not at first included among the civic institutions in the capital district on Shockoe Hill, but instead clustered around the market. Unexecuted designs by Latrobe for an elegant theater/hotel and a new church failed to secure a sufficient level of interest or funding.  Latrobe and his clients proposed to place the church at the apex of the civic order, in the center of the eastern end of Broad Street on the bluff above Shockoe Creek.

Richmond’s urban form continued to be enriched by a classical understanding of the form and meaning of the city well into the twentieth century, resulting in one the most successful amalgams of public and private architecture. We intend to continue to explore the civic architecture around us in greater depth and to bring the study into later periods as we go along. Please see the essays collected in the panel to the right for a deeper analysis of the city’s building types.

Thursday, October 21, 2010

Where is Council Chamber Hill?

In the late Spring, Urbanismo joined Renaissance Richmond in a tour of the neighborhood once known as Council Chamber Hill. Our search was for the site of Clifton, the long-vanished house with links to architect Benjamin Henry Latrobe. Having completed an impressive archival search, Richmond Renaissance blogger Jessica Bankston, a student at V.C.U., had engaged our attendance at her search for the house on the ground. Jessica took the photographs attached to this essay, since Urbanismo forgot their camera.

Detail from James Madison, A Map of Virginia 1818 (orig. 1807) [Virginia Historcal Society]. The Council Chamber House is
seen just to the right of the fold, standing nearly alone at the top of the steep slopes of Council Chamber Hill.
Council Chamber Hill was a unusually dense neighborhood occupying a small spur protruding from Shockoe Hill and the steeply falling ground around it just east of Capitol Square. It commanded a dramatic view of the Shockoe Valley and of the James River. The hill was usually included in lists of "the seven hills of Richmond" and figured darkly in the accounts of some of the city's most colorful history.
Here, courtesy of a signboard in Capitol Square, is a map of Council Chamber Hill today, an area occupied by high-rise state office buildings and parking lots.

Today it is mostly a parking lot that is banked above the broad barrenness of the relocated Fourteenth Street and surrounded by aging office towers. We assumed that it would be hard to find anything in the deserted asphalt behind the labyrinthine bulk of the State Highway Department headquarters. We underestimated the resistance of the urban fabric to utter oblivion. This neighborhood, still extant when Mary Wingfield Scott wrote in the 1940s, was largely obliterated in the expansion of state office facilities at mid-century. Council Chamber Hill is little remembered today, but it was once best known for its demi-monde character, as Richmond's "Red Light District" in the post Civil War years.

Looking west along Ross St. showing the dip or ravine between Council Chamber and Shockoe Hill, up which Governor Street runs. The region east of the Governor's Mansion was a haven for bawdy houses, gambling dens, and houses of prostitution during the years before 1870, when a reformers disrupted their activities. Arabella Yarrington Worsham met her future husband, railroad tycoon Colis P. Huntington, at Johnny Worsham's gambling establishment on Fourteenth Street on Council Chamber Hill. According to Mary Wingfield Scott, Worsham later operated a faro bank in an Antebellum house that stood on the lot to the right. It was replaced by the Richmond Press Building seen on the right in the photograph above on the corner of Governor and Ross streets. Arabella Worsham's dramatic rise in fortune has been recently documented at the Virginia Museum of Fine Arts by the reassembly of the remarkable Aesthetic bedroom from her house in New York City.

Our walk began on Ross Street (now called Grace). Ross Street is a tributary of today's Governor Street, the "county road" that in the eighteenth and early nineteenth centuries connected the original town east of Shockoe Creek with the new platted area on the hill. The county road is the curving route dashed in to the north of the "Public Square" and eat of Twelfth Street. The land atop Council Chamber Hill was apparently acquired from the Byrd family before the newer section of town was platted. It is seen as the blank section at the upper center of the detail from 1809 map attributed to Richard Young seen above, with Governor Street (called County Road on the plat) to the west and Shockoe Creek, which ran west of Seventeenth Street on the plat, to the east. Thus it was not at first laid out in streets, although its steep geography would have stymied development for a long time had it been laid out as a continuation of the overall grid.
Col. John Mayo, builder of the eponymous bridge over the James, lived in a brick house built as the interim seat of the Governor's Council and executive offices and which gave its name to the hill. Mayo is said to have kept a close eye on the condition of his ramshackle bridge by the use of a spyglass from his house on the hill. The view above may be similar to his, if it can be imagined without the modern buildings. The view below crosses his house site, looking along Old Fourteenth Street toward Broad Street.
As the nineteenth century progressed and property values increased, John Mayo felt called to develop much of the site. This he did by creating a series of narrow lots on tiers of streets and alleys that stepped down the hill to the east and south. These can be seen on the detail from the map of 1817 by Richard Young shown above. The undeveloped portion of the hill containing the Mayo House is marked J. Mayo. The original bed of Shockoe Creek is the curving stream to the right, Ross Street is to the left, and Monumental Church can be seen in the upper left corner. Fourteenth Street was later extended up the hill to Broad Street [through the site marked J. Mayo on the map] and was flanked by Mayo Street on the east. Jessica Bankston has explored the likelihood that the watercolor illustration for one of Latrobe's most elegant villas was intended for the Mayo family on Council Chamber Hill, as she has documented on her blog. In a useful map on her website she was able to determine the modern location of Clifton by applying a section of the 1876 F. W. Beers Map to an aerial photo of the area today. Her map indicates how dense Council Chamber Hill had become by the late nineteenth century.

Here we found the only remaining (relatively modern) building from the neighborhood and the foundation of a successor building that stood on the site of Clifton, an often remembered building that Jessica believes was based on the plans for the unbuilt Mayo villa. The photo shows us standing in amazement on the nearly obliterated southeast corner of the intersection of Fourteenth and Cypress Alley. A fragment of the granite curbing of Fourteenth Street emerges from the asphalt in the foreground.
Old Fourteenth Street was itself as much the result of a radical reshaping of the topography as the new Fourteenth Street down the hill. The two views, above and below, show nearly the same spot today and in the 1860s. The house known as Clifton stood originally at the head of a steeply sloping lot running down the south slope of Council Chamber Hill. When Fourteenth Street was extended up the hill, it was necessary to cut into the slope to lessen the grade, and Clifton was left standing high above the street.
This illustration of Clifton during the war years is from In War Time, by E. G. Booth, Philadelphia, 1885.

Here is the reshaped lower slope of the hill, originally terraced by the Mayos into lots and alleys. Mayo Street ran near the sidewalk visible on the opposite side of the new, straightened, four-lane Fourteenth Street. The neighborhood continued down the slope beyond the new thoroughfare.

The final image with which our tour closes looks south along Fourteenth, completely reconfigured in the mid-twentieth century. The Exchange Hotel, Richmond's most architecturally sophisticated hotel in the Antebellum era, once stood on the immediate foreground in the photo facing toward the camera. It stood on the north edge of what is now the modern extension of Bank Street.

Monday, October 18, 2010

The Jefferson Hotel: Urban Scale Ecole

Jefferson Hotel, American Architect and Building News, April, 1893.
Urbanismo has taken a bit of a break this summer to regroup and refresh our carefully calibrated sensibilities. We thought we would begin anew with an essay on one of our favorite elements of the urban scale in our provincial capital: the justly celebrated Jefferson Hotel.

The Jefferson Hotel, completed in 1895, outscaled in comfort and extent all that the New South metropolis of Richmond could require. It also played a significant national role in the development of the hotel building type. The Jefferson represents an ambitious effort on the part of civic leaders to affirm and promote a enhanced social and civic role for the hotel in the American city by providing an uncharacteristic richness of form and symbolic content. In spite of a disastrous fire and many renovations, much of the hotel’s fabric and even some of original furnishings remain intact. Thanks to its patron and exceptional French-trained architects, the hotel is a uniquely consistent manifestation of French academic architectural theories in the American context.
Jefferson Hotel Palm Court as rebuilt after the fire of 1901.
Lewis Ginter

The Jefferson Hotel was built for well-informed Richmond taste-maker Lewis Ginter (1824-1897), a wealthy tobacco manufacturer who played the role of civic philanthropist and patron of the arts. In later life he used his vast wealth to achieve personal and civic goals in harmony with the aesthetic movement known as the American Renaissance. By 1892 Ginter had taken up a plan to build a new hotel in the West End, determined to act as a benefactor to his burgeoning adopted city. The project’s extraordinary scale, complex plan, and high cost suggest that Ginter clearly intended to provide Richmond with an urban amenity similar to those in the American North and the capitals and resorts of Europe with which he was familiar.

The rectangular site selected by Lewis Ginter for the hotel occupied approximately one-half of a square or block west of downtown Richmond, between Franklin and Main streets, in what had been the city's most fashionable residential neighborhood for many years. The pressure of postwar industry and commerce in the city’s old center sparked new construction in the old residential areas. Franklin Street, which intersected with Capitol Square, had developed as a major axis of power as the city expanded to the west.
The lot might have suggested the massive block-like palazzo format utilized in most urban hotels of the period, but the architects took an alternate approach. The accepted proposal, as published in 1893, shows a strangely bifurcated building, with a three-story north front on West Franklin Street and a six-story section to the south facing West Main Street occupying about two-thirds of the site. This awkward juxtapositioning of facade elements, sometimes noted in the work of Carrère and Hastings, was derived from the emphasis placed on the plan in their French academic education and the subservience of facade to plan in their design philosophy.

The hotel exterior as built varied from the architects’ original proposal chiefly in the addition of two high campaniles which functioned as clock towers. The textures of the wall surfaces expressed each floor's position in the building's exterior hierarchy. Upper walls of closely laid, cream-colored brick rose above a brick ground floor incorporating banded rustication. The hotel rested on a low basement of rock-faced granite blocks sunk, on the north, into deep areaways. The walls were richly detailed with ornamental molded terra cotta window surrounds, arcades, cornices, and string courses.

The Franklin Street facade, seen above, stood back from the street and deliberately corresponded in height to the adjacent, three-story Archer Anderson House (enlarged in 1880 and since demolished) and other large Italianate-villa-style houses located along the street. A pair of towers flanked the main entry, topped with belvederes based on those at the Villa Medici. Lower wings with deep, bracketed eaves flanked the central portion of the north facade and behind these rose the tall, twin, domed campaniles that were visible across the city. A triple-arched loggia supported on paired, colored marble columns was located just above the vaulted entry porch. The campaniles served to unite the two sections more effectively and called attention to the building's civic role.
On the south front of the hotel (here seen immediately after the fire of 1901 destroyed the upper stories) Carrère and Hastings stacked terra cotta palazzo motifs. A plainly detailed ground floor, containing a smoking room, grill, billiard room, and other men's amenities, supported a long, nine-bay piano nobile, housing the dining room. The architects treated the dining room level like that of the garden front of Versailles, with an applied order (Corinthian here, rather than Ionic) clasping a window arcade. Here the order affirmed, in keeping with classical principles of decorum, that the hotel's functions culminated in and focused on a festive ritual of dining.

The Palm Court, or Pompeiian Court (seen to the right), provided with very French paired columns, each crowned with archeologically correct versions of the Pompeiian Ionic capital, functioned as an enclosed atrium or winter garden providing light to the interior of the Franklin Street section. It centered on a statue of Jefferson surrounded by beds of grass, paths, and fountains. The Franklin Street section was intended to serve families and female guests. A monumental vaulted staircase led down to the austere Rotunda Lobby in the Main Street end of the hotel, which was treated, not as a rotunda, but as an enclosed Renaissance courtyard with the deliberate imposition of cast iron girders and columns.

The Rotunda was a full story lower than the Palm Court and, like it, was brightly illuminated by a glass ceiling by day and electric arc lights by night. It served as the club-like center for the masculine lower level of the hotel, frequented by business travelers.In this remarkable space (lost in the fire of 1901 that destroyed the south end of the hotel, and rebuilt soon after in a very different manner) Carèrre and Hastings quoted directly from the sculpture court of the Palais des Etudes at the École des Beaux-Arts in Paris. The court, a central part of the school where Carèrre and Hastings had studied, was begun by François Debret in 1820, completed by Félix Duban in 1839, and enclosed by him with a glass roof in 1867. The architects imitated and elaborated the slender iron colonnettes that were added in front of the walls to support the gabled glass roof at the École. Contemporary writers noted the dramatic vista from the Rotunda to the Palm Court.

The Grand Salon, today the Dining Room of the hotel’s Lemaire Restaurant, embodied the most complete example in Richmond of what was called the "modern French style," accurately described in contemporary accounts as Louis XVI, based on the “Grand Salon” in Bordeaux’s Hôtel de la Préfecture transformed into an exercise in Beaux-Arts planning. The tripartite Dining Room, lined with gilded oak, at the opposite end of the hotel displayed contrasting features abstracted by the architects from the opulent forms associated with Napoleon III, such as the Reception Room at the Parisian Hôtel Continental and its prototypes at Versailles and the Paris Opéra.
The École des Beaux-Arts traditionally advocated the use of sculptural and painted decoration articulating or reinforcing the symbolic content of the building. Through its decorative program the Jefferson Hotel took on the character of a major public building. The works of art in the Jefferson, some of which were collected or commissioned by Lewis Ginter, conveyed the theme of civic virtue or by their presence proclaimed the hotel's role as a civilizing institution. The most important large-scale sculptural element in the hotel remains the figure of Thomas Jefferson by Richmond native Edward V. Valentine. By its position in the center of the Palm Court it emulated and rivaled Houdon's statue of Washington in the Rotunda of the Virginia Capitol.
Charles Garnier, Concert Hall of the Casino, Monte Carlo, 1878-80

Unexpectedly, the most direct inspiration for the front would seem to have been the Casino at Monte Carlo by Garnier (1878-79), seen to the left. The Casino served as the social center for daily promenades, gaming, dancing, and concerts at the popular resort city.  The Monte Carlo Casino, like Garnier’s Opéra, in its richness of decoration, pride of place, and exuberance of form, emulated or actually displaced traditional local civic and religious monuments. The casino as a building type might be taken as an appropriate model for a social center for a post-Civil War American city. Each building answered the unprecedented need of a newly mobile bourgeois society for an appropriately splendid public setting.

It is questionable whether either building actually functioned as a civic institution. Instead, they were commercial enterprises that borrowed the scale and monumental treatment, as codified by the École, of such an institution. One very obvious way in which the Jefferson Hotel differed from a fully public building was in its relative exclusivity and focus on entertainment. Like a club, and unlike the Virginia Capitol, standards of dress and the possession of ready money were prerequisites for entry and enjoyment.
Floor Plan, The Brickbuilder 1903.

Taken as a whole, in both plan and elevation, the hotel shows a more thoroughly French architectural character than most other American buildings of its period. Like Garnier, Carrère and Hastings effectively distilled and transformed Beaux-Arts planning principles dating from the eighteenth century. The École consistently based architectural design in the plan and its exterior expression. The intersecting circulatory rectangles so characteristic of Prix de Rome plans throughout the century and ultimately expressed in the design of Garnier's Opéra were condensed in their application at the Jefferson. The architects unified the remarkably articulate plan of the hotel, in which circulation worked on multiple functional and symbolic layers, by a regular repetition of interlocking elements and a cage-like grid of piers, columns, and beams, organized in tripartite groupings.

The building also displays how the eclecticism of Charles Garnier and his teacher Duban profoundly influenced the work of students at the École in the later years of the nineteenth century. This can clearly be seen at work at the Jefferson Hotel, with its references to both Garnier and Duban, its compositional and decorative bravado, its scenographic central processional route, and its civic pretensions.
There were, however, several ways in which the hotel displayed the commercial side of its character. Civic buildings in Richmond, as in Paris, usually occupy positions at the urban scale. The Capitol, Market Hall, City Hall, and many churches were placed either in axial locations or as self-contained elements in the streetscape. In Richmond as in Paris, commercial structures like hotels occupied conventional lots in the overall grid plan. The symmetrical and monumental aspects of the deeply modeled Franklin Street facade, appropriate for a free-standing civic monument, were diminished by their position on the side of Franklin Street. Although the loggias and campaniles formed a picturesque skyline and dominated the view over the rooftops along the street, the design would have been better served by an axial approach or forecourt. The uninflected south front better suits the hotel’s streetside location and commercial function.
The Jefferson Hotel represents an early effort of a firm of American Renaissance architects to develop a coherent form of architectural expression appropriate for the American city and an attempt to overlay the commercial aspect of modern urban life with the classical order increasingly visible in European cities. In spite of the effort to correspond to neighboring cornice heights on its Franklin Street front, the hotel loomed on the skyline of Richmond with an uncharacteristic bulk and unheard-of European ornamental splendor. No attempt was made to recall regional building traditions. With the advent of the Jefferson the former Confederate capital turned its back on its antebellum past.
In the controlled sense of movement, the scenographic interpenetration of space, and the theatrical use of the disparate themes of Pompeiian antiquity, French kingly magnificence, and Mediterranean splendor, the hotel embodied many late-nineteenth-century French themes. The scale of the project envisioned by Ginter and the handling of volume and decor by Carrère and Hastings at the Jefferson made them precocious American heirs of the tradition of Garnier.

Saturday, May 8, 2010

Critical Consciousness and the Unchanging in Architecture

‹‹Bisogno fare qualsiasi cosa, fuorché l’invenzione di cose nuove: la vera invinzione è il non inventare nulla. Chi si rende consapevole di tutta l’inventabilità dell’inventabile è colui che non inventa nulla, perché ormai tutto quello di cui è capace questo nostro sistema planetario è già stato prodotto, ed è tutto qui: più esso sarà reinventato e piu sara posto in crisi.
Ma occorre viceversa capirlo.
Dunque pianificare vuol dire lasciare lavorare la realtà, comprendendone il senso del miglior utilizzo››.

S. Muratori, Autocoscienza e realtà nella storia delle ecumeni civili, a cura di G. Maranucci, Roma 1976.

One question is of singular importance to the contemporary architect attempting to return to the classical tradition amidst the dissolving wake of the modernist movement. That question is “what is unchanging in architecture?” Tradition, in this sense, is the means by which we access truth. The adjective classical denotes works of architecture which are prized as the finest exemplars of a tradition. These are held up as models for the guidance of current practice and for the assurance of future success. Therefore, the form that the examples in a classical tradition take is necessarily contingent on the material requirements and propriety connected with both time and place.

The classical architecture of one era will not take shape in the same way as that of another, nor will the architecture of one place necessarily resemble that of a different place even at the same time. Conventions such as patterns of use, fashion, language and ways of building change over time and in different places, gaining their correctness through general acceptance and habit. This accepted knowledge and these skills and customs—-means by which we pursue the true, the beautiful and the good—-are guarded and handed on by the custodians of tradition to succeeding generations. As part of this transfer, the means of accessing truth is developed and changed according to the requirements of time and place. The tradition of one place may not be the same as that of another. The purpose of tradition is to bring into conformity the way we each pursue our ends in the particular with the best possible means of achieving those ends in the universal. In other words, tradition is the way in which our judgment is informed through the comparison of the way things are with the way things should be. Thus tradition is not about preserving a unique way of building, but of ensuring that our buildings are the best they can possibly be.

The concept of imitation is essential to an understanding of tradition. The idea of mimesis, first formulated by Aristotle in his Poetics, became an explicit principle of creative formation and procedure from ancient Greece until the end of the Renaissance.[i] As James Ackerman has noted, the concept of imitation was understood in two ways both for the ancients and the thinkers of the Renaissance.[ii] Imitation in art occurred both in mimesis—the imitation of nature or human behavior, and in the imitation of preceding artists. The first mode of imitation forms the framework in which moral judgment is made possible, while the second provides a means of translating these universal truths for a particular time and place.

Imitation, as Quatremere de Quincy enunciated as late as 1823, was seen not as mere copying of natural forms or previous works, but as the embodiment of apparent universal rules governing the production of beauty in the work of art.[iii] These rules could be extracted from nature and perfected over time through the imitation of predecessors in a tradition. As Ackerman points out, imitation is inherently forward looking. By this he means that the artist is able to use imitation during the creation of the work of art. This view is in opposition to that of modern art historians who use the concept of “influence,” an idea only debatable after the creation of the work of art and in the service of the art historian.[iv]

How are we then to judge what is essential in a tradition? What can be discarded in the face of improved technology, or to suit changing political or physical conditions? This question has undoubtedly been the starting point of all architectural endeavors and probably troubled the architects of the fourteenth century as much as it did the proponents of the eighteenth and nineteenth century revivals. In a world so full of varying forms it has been difficult to determine what concepts and categories should guide contemporary practice. Compounded with a seeming abundance of choices, the void left by modernism’s denial of tradition has exaggerated its self-proclaimed goal of severing us from the past. We are faced not only with the questions raised by the contingent reality of tradition itself, but by any attempt to restore a tradition that has been systematically eradicated.

As citizens of the United States our tradition is that of the West. This is not to say that the tradition of Greco-Roman-Judeo-Christian architecture is the only one in our country, or the first, but that it is the visible part of our “life, liberty and the pursuit of happiness.” The need to separate our new republic from the colonialism of England and justify our classically derived system of government prepared the United States for the embodiment of its constitution in an architecture of Western classicism. Little wonder that the author of the Declaration of Independence should also design the new Capitol of Virginia using the classicism of the Roman temple.

Fiske Kimball in his American Architecture asserts that “the classical ideal thus embodied was ultimately to rule in America to a degree unknown in Europe.”[v] Indeed, it was to precede it by more than a decade. The embodiment of the political order in the architecture of America is significant in that it points to the most essential truth of the classical tradition: the understanding that the highest good in life is the perfection of our nature, a good held since the Greeks to be accomplished through the moral life led in community. This is the self-evident truth behind the most just political systems of the past and the guiding principle in the American founding.

What this understanding means for architecture is that our ability to pursue our highest end as individuals is dependent on the freedom insured by our government, and that architecture serves this good as the embodiment of the state.[vi] In other words, architecture is the visible part of the more important activity of politics. Conversely, it is only in the freedom provided by well-ordered politics that architecture can be pursued. Vitruvius opens his De re aedificatoria by noting that it is in the realm of peace brought about by the Emperor Augustus’ conquest of the world that the opportunity and need for civic buildings arose, thus grounding architecture in a particular relationship with politics.[vii] Not only can mere building become architecture, but architecture can embody the polity and legitimate its claim to authority. By doing so, it can establish the means for its citizens to pursue the moral life.

Traditions are necessarily conventional. This means that they are contingent on materials, climate and circumstance. Conventional knowledge is particular, temporal and accidental, meaning that it could have been otherwise. Limited by the contingencies of both time and place, knowledge of convention is gained from experience and hearsay. The best pitch of a roof is dependant on the climate and characteristics of the location. That there exists a hierarchy of architectural orders and that they include an architrave, frieze and corona is not necessarily true (although the predominance of such features across traditions could point to a correspondence with a larger order). So too, the rules governing a given order’s proportions may vary with the changing requirements and traditions of the building and its purpose. Gaining as they do their acceptance through trial and error, such conventions are not necessary truths, or a priori knowledge, but point to a correspondence with an order outside of sense experience. Conventions have been adduced to be the best possible way of embodying the necessary truths of political life. Conventional knowledge on its own may be factually true and empirically verifiable, however, by its very nature it cannot be true in every instance. It can only tell us about the actual world and hence what is the case; it can say nothing about the ideal world and what should be the case.[viii]

When the American founders referred to the self-evident truths of life, liberty and the pursuit of happiness they were invoking the necessary truth of nature, the repository first described by the ancient Greeks of the true, the beautiful and the good.[ix] As a priori knowledge, these truths of nature can be known through reason independently of experience or empirical evidence and are understood as incontrovertible imperatives. In platonic terms Nature can be described as the intuitive realm of perfect forms; for Vitruvius she was “the architect [who] placed the hinges as central axes” of the earth.[x] For our purposes it is sufficient to say that nature is the totality of universal truths both known and unknown including the laws of physics, the rules of geometry and logic, and the truths described in the American Constitution such as justice, liberty, the equality of man, and the pursuit of happiness. Indeed, nature includes not only the natural objects around us such as plants, animals and rocks, but the system of principles by which things can be explained according to reason and which were true prior to their discovery. More importantly, nature provides the mark against which rational judgment is made possible, the moral order which allows us to state confidently that democracy is the best form of government because it has as its goal the good of every citizen, and the goal of all our efforts as human beings.

We can posit the idea of democracy, though a state where every citizen has been treated equally has never existed, because we can see that a state where some or all are not free is imperfect. In other words, the truth of nature is revealed only through the comparison of things we experience or accept with things we know to be true through reason. The truth of nature is self-evident, but it can only be accessed through our experience of conventional truth. As Socrates points out to Meno, people do not enquire into what they fancy they know, though they may in fact be entirely ignorant of it, unless they begin to compare what they think they know with the truth of nature.[xi] For example, we are gifted with the concept of justice at birth, but we must experience different embodiments of justice in practice to be able to understand perfect justice, and we must always be ready to reexamine our necessarily incomplete knowledge of justice. This Socratic doubt leading to the discovery of the order of nature—to the intrinsic, universal and enduring—is made possible only through out experience with the extrinsic, particular and transient we encounter in the here and now.[xii]

For the pagan writers of antiquity truth was embodied in number. The comparison between knowledge of convention and nature could be expressed through the concept of the part and its relationship with the whole. Number and the relation between numbers, or proportion, were seen as ideal frameworks upon which the basis of nature was modeled. The application of number and proportion to conventional material resulted in measure, and the correct use of number and proportion resulted in the beauty of the building. To phrase this another way, measure was meaning embodied in experience through beauty.

For Vitruvius, architecture depended upon number in the form of Order, Arrangement, Eurhythmy, Symmetry, Propriety and Economy. In the first place, “ordering is the proportion to scale of the work’s correspondence to an overall proportional scheme of symmetry.”[xiii] In other words, for the work to be beautiful it must initially conform to a geometrical framework extending to the subsequent design.[xiv] Arrangement, eurhythmy, symmetry, propriety and economy are aspects of this proportional application of number to material and depend on measure, which determines the relationships that make up proportion. At the center of this ideal proportional analogy Vitruvius placed the human body, described in the correspondence between the form of the extended human figure within the perfect geometric shapes of the square and circle.[xv] The anthropomorphic analogy was subsequently taken as the beginning of classical imitation and dominated architectural theory well through the sixteenth century.

According to Vitruvius the architect employs both conventional knowledge gained through experience, which Vitruvius termed fabrica, and the knowledge of the necessary truths of nature to explain a work’s beauty through ratiocinatio, or reasoned judgment. Just as the limbs of the body are proportioned in relation to the whole within a meaningful framework, beautiful buildings must have a relationship between their elements and the whole corresponding to their enduring purpose. The perfect geometrical forms within which the finite proportions of the human body are inscribed allow us to explain their beauty according to a higher meaning. Thus measure is essential for Vitruvius in the application of proportion to material, but only insofar as it serves the meaning inherent in the number it defines.

Renaissance thinkers such as Leon Battista Alberti took the tradition of Socratic skepticism, or the understanding that expertise must include both the knowledge of convention and of nature to its highest level, analytically breaking up all accepted thought into its constituent parts and reassembling them in a way that could answer the requirements of new and changing circumstances. Alberti, in his own words, "never stopped exploring, considering, and measuring everything, and comparing the information through line drawings, until [he] had grasped and understood fully what each had to contribute in terms of ingenuity and skill,” or until he had determined through measure the dimensions imitated by the ancients from nature.[xvi] Critical to this ability was the understanding that the content of a thing was more important then its form, and that form served as the access to a thing’s content.

The essence of the modernist movement lies in the mistaken belief that this Socratic doubt, instigated by our encounter with conventional truth, can only be answered by conventional truth, or fact. When Enlightenment thinkers realized the possibilities of the connection between natural and conventional truth based upon improvements in the science of measurement their Socratic doubt of received ideas turned to a revolutionary doubt in the very meaning of the universe. As soon as the measure of a thing (formerly a means of extracting a material object from a universal idea) became the thing’s very meaning, the imitation of nature by architects became pointless. While previous thought had held that regardless of the form of a thing such as the universe, the meaning behind it was immutable, the new view held that the way we perceive the universe, or the form of a thing, was all we could know about it, and therefore the way it should be.

Artists and architects, in the tradition of Socrates, have always questioned accepted truths and sought to translate them into the language of their own time. However, the Enlightenment’s rejection of inherent meaning required that artists’ translations could only be descriptive, meaning that they now relied on measure devoid of meaning. Imitation, in order to avoid the trap of mere copying, must be undertaken analytically. This means that, just as Alberti carefully studied all the ways in which the greatest buildings had treated specific conditions thereby arriving at an understanding of the universal they all pointed toward, imitation must be undertaken with a thorough knowledge of the whole body of traditional architecture and extract from each model pieces of the eventual solution for the given set of conditions. Imitation in the Enlightenment became the descriptive copying of the measurements and particulars of specific buildings. It was no longer the analytical treatment of precedents as a kit of parts capable of innumerable possibilities, all working within the framework of a building’s inherent purpose.

In order to judge what is essential in a tradition and what may be discarded in the face of improved technology, it will be necessary to recover our ability to think analytically. In other words, we must recover the understanding of imitation. The twentieth-century Italian architectural theorist Saverio Muratori has posited the existence of two types of consciousness essential to all architectural traditions. Spontaneous consciousness is entirely conventional and, though invariably traditional, lacks the analytical capacity for imitation. It could be described as something quite similar to Vitruvius’ fabrica, or practice. Spontaneous consciousness is simply the way things are built. Critical consciousness, on the other hand, represents the theoretical side of architecture. "When someone builds his own house with his own hands, he does not follow the dictates of the various architectural schools or currents and does not choose to build it out of structural steel or tree trunks without distinction: he does it as a house is built at that particular moment and in his own cultural area, thus acting in full spontaneous consciousness. Acting with critical consciousness is almost the opposite: when we are going through one of those critical periods . . . people are obliged to choose what they are doing, but let us make it clear, they do not choose having acquired greater maturity but out of uncertainty that what they are doing is right or wrong, in the absence of their community codifying what is right and wrong."[xvii] Muratori describes this modern absence of communal consensus as a crisis, carefully reminding us that the term does not necessarily denote a catastrophe, but rather the point at which an unresolved question is recognized and addressed. Critical consciousness is for Muratori both the cause of modernism and the only means of returning to and continuing architectural tradition. "If it is impossible to resuscitate spontaneous consciousness when we no longer have it, it is wise to exercise critical consciousness for the best. And the best that this can produce is to stick to the world of spontaneous consciousness, i.e. to recuperate what we would do if we had continued to operate through it."[xviii] It is only with our critical consciousness that we can regain the necessary ability to compare what is with what should be.

This is accomplished, according to Muratori, through the analytical “reading” [lettura] of the great buildings and cities of the past and the extraction from them of the essential human patterns of building. Rather than merely copying details—roof pitches, façades, column diminution or plans—the traditional architect must break down all the examples of the way in which buildings in the tradition conventionally treat specific problems, and from them reassemble a theory of universal types of architecture, both on the scale of the individual building scale and that of the larger city. Central to this endeavor is the understanding that although there may be new uses for buildings and cities, there are a limited number of building and urban types. These types derive from universal constants among buildings and cities.

Modernism attempted to replace spontaneous consciousness, a principle intimately linked with tradition, with a wholly theoretical vision of the future. As a result, however, architects have come to rely completely on conventional knowledge and the denial of analytical thought. In the attempt to enthrone critical consciousness as the sole means of producing art, modernist thinkers have been forced back upon conventional truth utterly devoid of theory and meaning. Modernism, for all its insistence on originality and freedom from tradition, is in fact a slave merely to the way things are done. Neoclassicism, the ultimate manifestation of modernism, is motivated to copy only particulars in just the same way that twentieth-century modern architecture can do nothing more than conform to the whims of its architect.

In order to comprehend what is unchanging in traditional architecture, we must understand that while conventional truth cannot prescribe the way things should be, it is the only means by which we are led to compare the way things are with the way they ought to be. Practice informs theory. Conventional knowledge provides the means by which we can access the order of nature. It is only through the analytical imitation of convention that we can apprehend the universal order of nature and make manifest the city of God.


[i] Aristotle. The Basic Works of Aristotle. Ed. Richard McKeon. (New York: Random House, 1941), 478.
[ii] Ackerman, “Imitation.” Origins, Imitation, Conventions: Representation in the Visual Arts. (Cambridge, Mass: MIT Press, 2002), 64.
[iii] Quatremère de Quincy. An Essay on the Nature, the End, and Means of Imitation in the Fine Arts. Trans. J.C. Kent. (London: Smith, Elder and Co., Cornhill, 1837), 11.
[iv] Ackerman, 65.
[v] Kimball, American Architecture. (Indianapolis: The Bobbs-Merrill Company, 1928), 75.
[vi] Westfall, Carroll William, and Robert Jan van Pelt. Architectural Principles in the Age of Historicism. (New Haven: Yale University Press, 1991), 49.
[vii] Vitruvius, Marcus Pollio. Ten Books on Architecture. Trans. Ingrid D. Rowland. (New York: Cambridge UP, 1999), 21.
[viii] Westfall, Architectural Principles, 56.
[ix] Westfall, Carroll William. “Architecture and Democracy, Democracy and Architecture.” Democracy and the Arts. Ed. Arthur M. Melzer, et al. (Ithaca: Cornell University Press, 1999. 72-91), 76.
[x] Vitruvius, 109.
[xi] Plato. “The Meno.” The Collected Dialogues of Plato. Trans. Benjamin Jowett. (Princeton NJ: Princeton University Press, 1961), 389.
[xii] Westfall, in Architecture and Democracy, Democracy and Architecture, has described this doubt as “pious skepticism,” which has been replaced by the impious skepticism of modernity.
[xiii] Vitruvius, 24.
[xiv] Vitruvius, Commentary, 149.
[xv] Vitruvius, 47.
[xvi] Alberti, Leon Battista. On the Art of Building in Ten Books. Trans. Joseph Rykwert. (Cambridge, Mass: MIT Press, 1988), 155.
[xvii] Gianfranco Caniggia and Gian Luigi Maffei. Interpreting Basic Building: Architectural Composition and Building Typology. Florence, Italy: Alinea, 2001), 36.
[xviii] Caniggia and Maffei, 42.

Friday, April 9, 2010

Exploring Shockoe Slip and the Rock Landing


         Urbanismo continued the Tuesday evening tours of the oldest parts of Richmond. This week we visited the most organic section of the city, the area settled in the seventeenth century as the trading village of Shockoes. We looked at its connection with the Rock Landing. The landing served as the dock of Richmond until the new City Dock, an extension of the James River Canal, was fashioned in 1809. This section of the city is also the most heavily altered. Its broken lineaments often call on our most active imagination to visualize or even to locate the neighborhood in its historic context.

         We began in the Shockoe Slip, one of Richmond's most appealing places and once the center of an international trade in flour and tobacco. In the nineteenth century, the city's crowded commercial district clustered around this small triangular plaza. The apppearance of the Slip has changed dramatically since the 1880s and even within our memory. The Shockoe Wareouse vanished long ago. The area continued to serve as a manufacturing and trading center until the 1960s. The buildings were eventually rehabilitated to serve as restaurants, bars, and shops, beginning in the 1970s.

           In many ways the Slip was more visually effective before the rehabilitation than it is today. The cobbles used to pave the plaza formerly ran right up to the fountain with only the stone bollards serving to keep the wagons at bay but allowing the horses to get up close. Please remove the foundation planting and the anachronistic horse-head top element with the light globe! Hasn't anyone seen pictures of Rome?

               This map, dating from about 1809, is one of the first to show detail in the area around the Rock Landing, labelled near the center of the map. It appears the center of the town of Shockoes consisted of the row of lots along the landing including the "Ferry Lot," the alley behind, and the narrow cross street later called Fifteenth Street. This filled the area between Shockoe Creek and the base of the bluff. The low-lying meadows behind, through which the creek meandered, were left undeveloped  for any years.  The large empty section to the north is the Mayo property on Council Chamber Hill, soon to be subdivided into lots by Col. Mayo. The oddly shaped tracts to the west, corresponding to the high ground occupied by Shockoe Slip today, undoubtedly were the result of adaptations to the steep topography.

           Above is seen a map of the area around the mouth of Shockoe Creek, made about 1820. Shockoe Slip is in the lower left corner. It shows not only the informal shapes of the alleys and streets, but also the original curving shape of Shockoe Creek and the very narrow and straight new bed it received in the early nineteenth century just to the right of lot 334. The odd-shaped lots and crooked alleys date to the distribution of land here in irregular parcels corresponding to the curving route of the old road through the area and which were divided up into lots by the owners, principally Buchanan, Ross, Coutts and McPherson. The alleys, some lined with small lots, were given names such as Lombardy, Exchange, Cypress, True Heart, Tobacco, and Byrd's. The Rock Landing was now superseded by Water Street, seen in front of lots 323, 324, and 339. The "Old County Road" is Governor Street and was the principal way up the bluff to the top of Shockoe Hill.

The map detail above by Mijacah Bates from 1835 shows the former rock landing incorporated into the bank of the city dock with the lots that fronted on it still intact.

             The curving form of the Governor Street and the continued irregularity of its extension as Thirteenth Street to Cary is clear on this map and on the 1889 Sanborn Map 15 shown later. Above is a view from Main Street looking up "the old County Road."

Shockoe Slip was located on the south side of Main Street at the foot of Governor Street, down which most of the hogsheads of up-country tobacco were rolled on their way to the great warehouses that had stood near this site since the late seventeenth century. Here the area is seen on an 1859 map.

The Shockoe Warehouse occupied a small bluff near the canal basin. The series of buildings that made up the warehouse were said to cover two and one-half acres in 1837 [Richmond Whig and Public Advisor, 1837]. They were typical of warehouse at the time: low brick walled structures that contained a grid of long roofed alleys with steep hipped roofs, lit and ventilated by regularly placed windows and separated by internal courtyards.

Below is a view of the exterior and interior of Seabrook's Warehouse on Seventeenth Street, similar in form. Tobaco warehouses appear to have opened directly without interior walls into the courtyards, as seen in the 1865 view from Harper's Magazine below. Seabrook's Warehouse was built in 1810 and demolished in 1910. Its site was reserved for public use and for a time was used as a public playground. It remains empty today.

Seabrook's Warehouse

Detail from early view of city from Manchester. The flat roof in center is the Shockoe Warehouse.
 The gabled building at center right is the office. The easterly slope from the slip is
visible at center right [Sanford, Richmond, 1975].

The polygonal section of the Shockoe Warehouse, seen at the top above on the 1876 Beers' Map of Richmond, came to a point at the triangular plaza now known as Shockoe Slip. According to research by Jeffrey Ruggles, the name Shockoe Slip was not formally applied on a map until 1873. Slip appears to have been a name traditionally applied to a passage or section of street used as a public space in Richmond. However, the similar small alley, seen at the bottom above, that ran behind the Sixth Street Market in 1876 was called "Market Slip." The vast tobacco crop produced in the Piedmont region was collected and inspected at these warehouses at the end of the James River and Kanawha Canal. Jeffrey Ruggles has uncovered some interesting photos of the Shockoe Warehouse at his very useful article on the origin of Shockoe as a name.

This 1865 photo from the Library of Congress shows the burned-out walls of the Shockoe Warehouse on top of the bluff to the upper right after the Evacuation Fire.

This image shows a fine oxcart in front of reconstructed Shockoe Warehouse c 1900-1910 with the Tobacco Exchange seen beyond along Shockoe Slip.

          The map shown above is a Sanborn Insurance Map of 1889. Shockoe Slip and the enormous Shockoe Warehouse are seen to the upper left and Fourteenth Street extends away to the lower right. The canal has been overlaid with a complex web of railroad tracks.

          The map at the very top of the blog, dating from 1781, shows three buildings at the site of the Shockoe Warehouse and two at the location of Byrd's Warehouse on Fourteenth Street.  Mordecai, Richmond's Herodotus, confirms that there were two warehouses (or "inspections") in this part of town in about 1800: Shockoe Warehouse, "a mere cluster of wooden sheds," and Byrd's, a brick structure on the northeast corner of Franklin and Fourteenth streets. Shockoe Warehouse shows up as a square structure on the west side of Thirteenth Street next on the 1809 map above. Byrd's, established in the late seventeenth century, and rebuilt and relocated several times, was long gone when Mordecai wrote and another warehouse had been built on the canal basin. In addition, Seabrook's Warehouse had been constructed in Shockoe Valley.

             The Shockoe Slip fountain was put up in 1910 to provide water to the draft animals that had arrived at their destination. It replaced a fountain that was in place as early as 1876 on the Beers' Map above. The Slip provided a open area at the entry gate of the great Shockoe Warehouse. It is the triangular building in the center of the map above. The warehouse was fronted by an arcaded Italianate market building, seen above. This housed the Tobacco Exchange, built after the Civil War. The site of the exchange, where the Martin Agency now stands, was to our back as we photographed the fountain.

              The plaza is undoubtedly the result of the crashing together of the irregular lanes of Shockoes with the regular grid of 1768 Shockoe Hill. The distinguished Columbian Block, with its third-floor Grain Exchange or market, forms the angled east side of the plaza. The Slip continues south as an angled street running toward the river.

                It is immediately noticeable that the Slip is on an elevated arm or outcrop that projects from Shockoe Hill to a point just above the canal.  This is demonstrated by the deep, sunken alley to the rear of the Columbian Block seen here from ground level in the Slip. The Slip continues in the form of an angled street until it ends in a sharp declivity about a block to the south.

             To get reach the edge of the bluff, the Slip crosses Canal Street on a concrete bridge. Canal Street was cut through the outcrop in the early twentieth century, creating a dramatic juxtaposition of levels. The warehouse previously extended out and filled the entire hillock.

          This view, photographed from the end of Shockoe Slip, shows the site of the Shockoe Warehouse.

          Returning to the entrance to the Slip at Main and Thirteenth streets, we passed a familiar sight- one of two cannons on Main Street doing sentry duty as bollards. This one used to stand at a much more rakish angle and was unpainted, as Urbanismo recalls in years gone by. We proceeded by way of Virginia Street to the gate in the flood wall at Fourteenth Street and walked along the river bank at the base of Shockoe Slip.

            The legendary sewer-pipe walkway under the railroad gave us a good view of the substantial granite embankment that runs along the entire river edge of Richmond from the site of the Haxall Mills to the the mouth of Shockoe Creek.  The new flood wall runs close behind it west of Fourteenth Street, but angles back to leave outside a large flat area east of Fourteenth Street, formerly the site of railroad yards.
          Here is the large, unoccupied area near the Fourteenth Street flood wall gates. Haxall Mills was located to the left, south of Shockoe Slip and powered by the water in the canal. After the demise of the canal system, the area around Fourteenth Street was used as a rail yard for the many trains entering Richmond from south of the river.

       The Richmond Dock ran from Pear Street to Fourteenth Street. Here the western end is seen in an 1889 Sanborn Map. A small basin was located east of Seventeenth, where a drawbridge crossed the long, wide canal that formed the dock. Shockoe Creek ran under the dock basin roughly parallel to Sixteenth Street. It still empties into the river in the same location.The straight line to the left of the creek's mouth represents the stone embankment.

                This drawing shows the drawbridge that allowed Seventeenth Street to cross the Richmond Dock. The company of Davenport and Morris, seen above on Dock Street in 1893. According to the maps shown above and to the testimony of Mordecai, the Rock Landing is buried immediately to the left, out of the picture, under the site of the Richmond gas works.

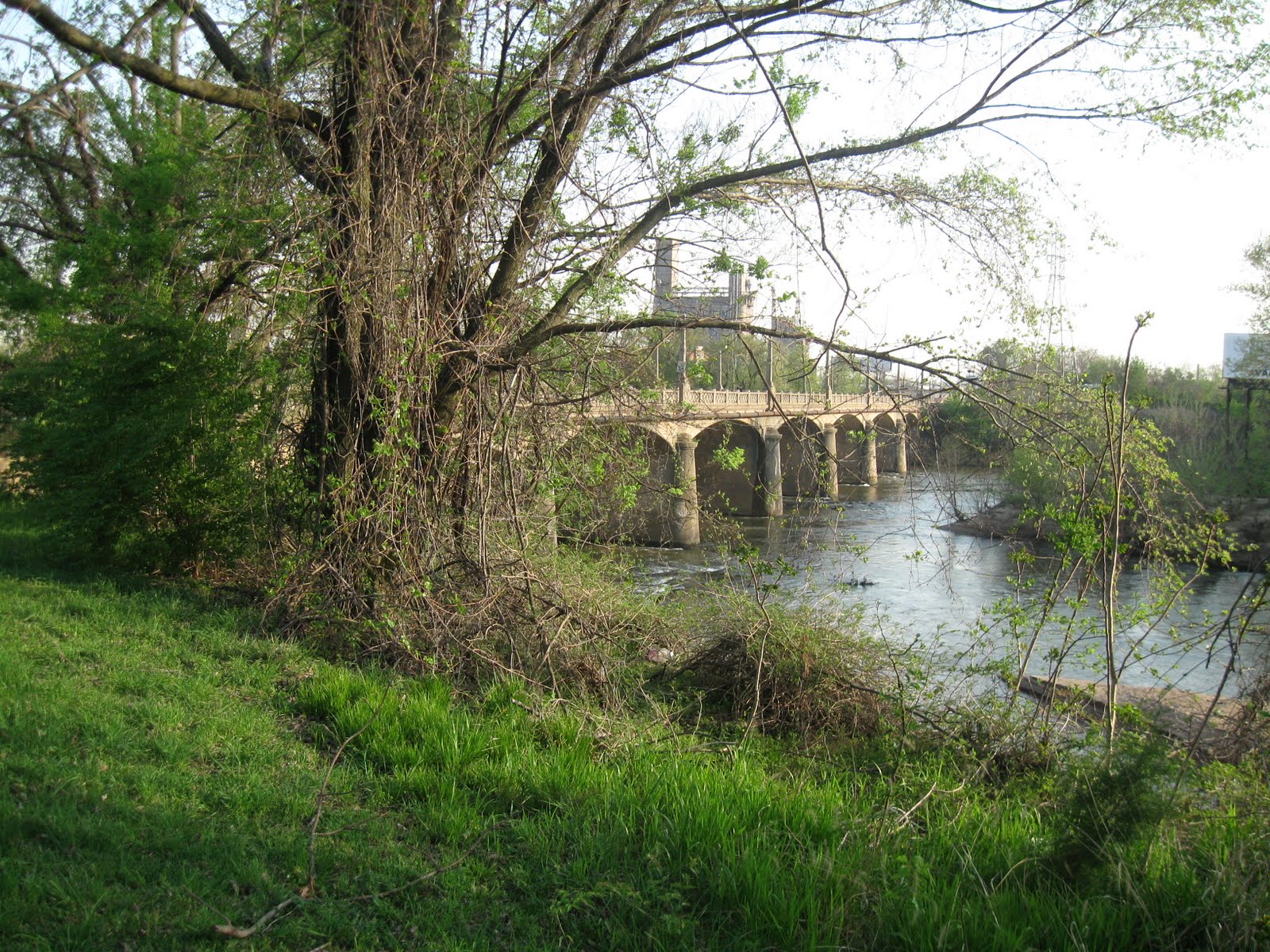

             Urbanismo followed the stone river embankment past the graceful arches of Fourteenth Street (formerly Mayo's) Bridge, and then proceeded back through the floodwall and along Fourteenth Street up toward Main Street.

        Here we saw the former Richmond Hardware Company Building on the right at Fourteenth and Dock street and the old Southern RR Depot (it lost its south end to the new canal project). The Rock Landing was about one square to the east (right).

Here the curving irregularity of Fourteenth Street shows its pivotal position. The angled route to Mayo's Bridge meets the 1737 grid to the right and the less regular street patterns to the left. The vacant lot in the center of the photograph above was the location of the frame building that served as the Capitol until Jefferson's temple-form building could be completed on the hill.

         This Sanborn Map from 1889 shows the squares north of Cary from Thirteenth to Fifteenth streets. Lombard Alley is located in the center of the lower left-hand square. Except for the southeast quadrant east of Virginia Street, the buildings and alley remain largely intact. Lombard Alley is seen below left looking west from Fourteenth Street. The extension of the alley to the east is seen to the right .

              Here on the right is that characteristic Richmond feature, the parking kiosk. The photograph on the left shows the west end of Lombard Alley looking east from Thirteenth Street. A series of stone bollards protected the building's foundation.

            Urbanismo finally returned to the Shockoe Slip. To the left is a view along Cary Street looking west from Thirteenth and, on the right, a view of the wonderful scribed granite sidewalk slabs at the corner of Thirteenth and Cary. The variety in sidewalks in the area confirms Mordecai's remark that "the dealers who wished to entice the ladies into their shops (stores, I beg pardon) would present a paved entrance; those who sought rougher customers offered a rough reception, over gravel or cobble stone." Here, there are three kinds of finishes on the enormous stones, designed to give good traction. Some were diagonally grooved, others given a straight groove, and still others treated with a bush hammer. The corner stones were given a miter joint.

            Urbanismo will continue the touring later with a look at nearby Council Chamber Hill.
